Cnc Machining OEM Polishing alloy steel jig and fixture parts and design-PTJ hardware factory

jig and fixture

Explain an introduction of Jig and Fixtures Jigs and fixtures are production tools used to accurately manufacture duplicate andinterchangeable parts. Jigs and fixtures are specially designed so that large numbers of components can be machined or assembled identically, and to ensure interchangeability of components.
A plane surface can be located by three pins. The pin locator is rough surface can belocated by means of location pads having point contact. This is achieved by providingspherical surface at the locating point on locating pins.

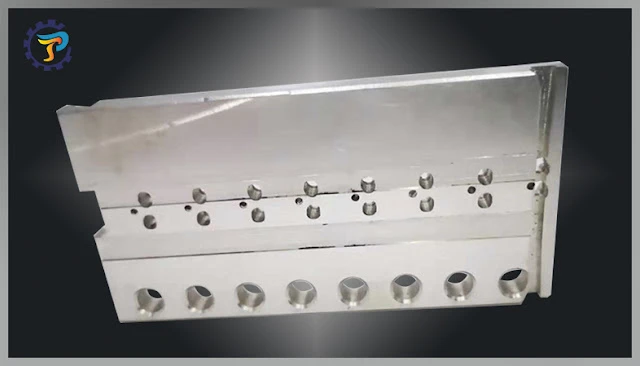

  • Product name:jig and fixture parts and design
  • No+Color:A22+silver
  • Surface treatment:polishing
  • Product material:alloy steel
  • Proofing cycle:7 days(100000 pcs/M)
  • Application:jig
  • machining factory:PTJ
  • Product Category:Fixture
  • Production Process:milling machine processing
  • Size:350*170*30
The PTJ factory has more than ten years of experience in Cnc Machining Polishing alloy steel jig and fixture parts and design and has a complete production system for surface treatment, structural processing and metal molds.
